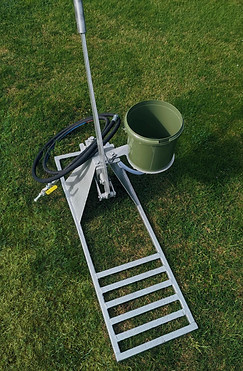

The Westy

​

The Westy is a hand operated piston pump designed to pump most types of low viscosity resins.

​

The pump comes supplied with:

1 x bucket reservoir

1 x suction hose (reservoir to suction inlet)

1 x 3 metre length of high pressure delivery hose, ball valve,

adapter pipe and push-on nozzle

​

To set up the pump pull the handle out from under the pump body and

insert the link pin through the handle and the hole in the piston.

Replace the R-clip to secure.

Place the bucket on the reservoir stand and connect the suction hose from

the inter valve (underneath the pump body) to the bucket hose connector

(under the bucket).

Connect the delivery hose onto the outlet nipple on the front of the pump body and tighten firmly.

Before pumping any resin the system should be flushed with solvent to ensure any moisture in the equipment is expelled.

​

It is possible to pump 4 litres per minute, however, in ordinary operation the expectation should be for approximately 3 litres per minute.

​

​

The Westy Twin

(two component resin pump)

​

The Westy is a hand operated piston pump designed to pump most types of two-part, low viscosity resins



The pump comes supplied with:

2 x bucket reservoirs

1 x suction hose (reservoir to suction inlet)

2 x 3 metre length of high pressure delivery hose, Y-connector, ball valve,

adapter pipe and push-on nozzle

​

Follow the above instructions for The Westy, accounting for the extra

reservoir.

​

Important:

When using the The Westy Twin two-component pump it is essential that

resin of equal quantities (1:1 ratio) are maintained in both bucket reservoirs

at all times. Failure to do so will cause Part A or Part B to be pumped round

the system resulting in mixed resin setting in the pump.

​



Titan Electric Pump

​

Details to follow
